Description

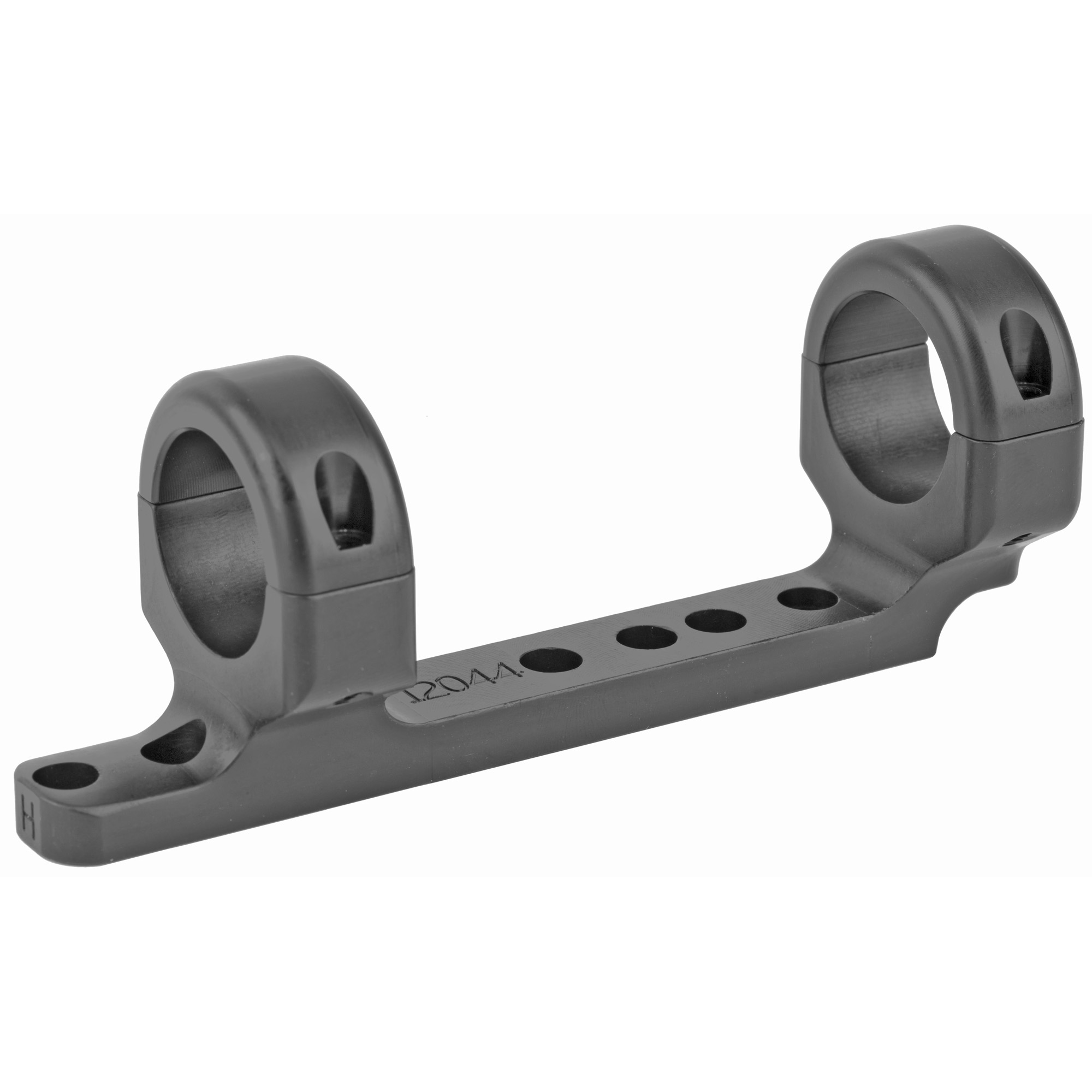

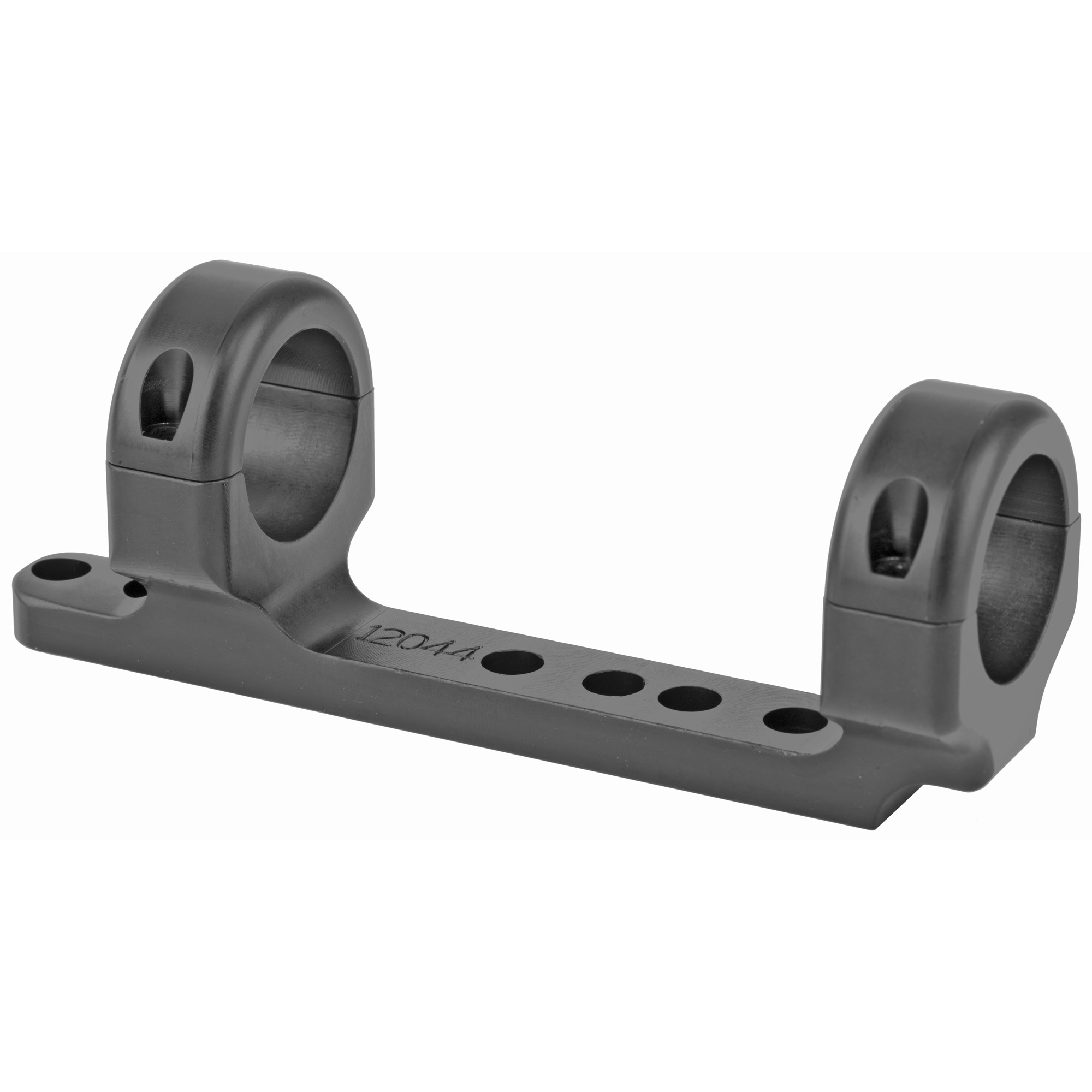

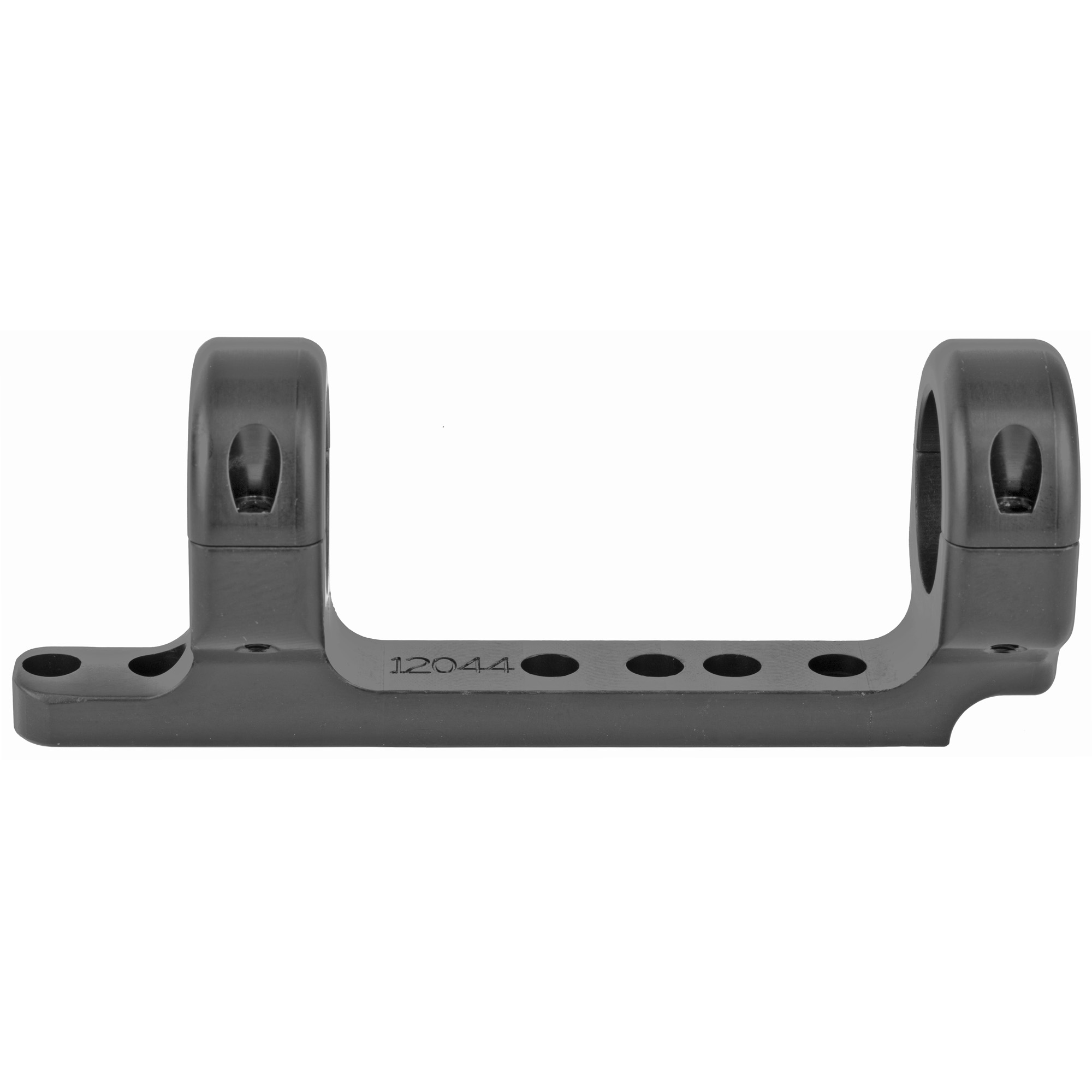

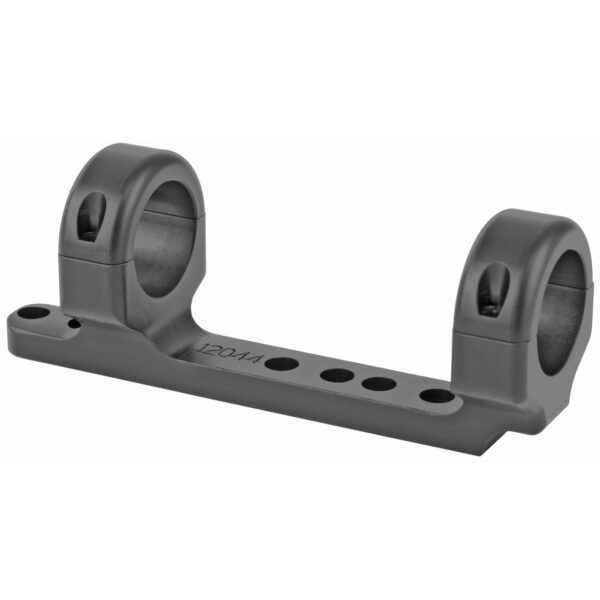

DNZ Game Reaper Scope Rings for Marlin 1894/1895/336 | 12044
Marlin 1894, 1895, 336, XLR: Will also fit Henry Rifles that are completely flat on top of receiver and are drilled and tapped.
Mount fits both left and right hand firearms.
Base screws are 8-40 X 1/4″ long. Ring screws are 6-40 X 5/8″ long. Base screws use a 9/64″ Allen wrench and ring screws use a 7/64″ Allen wrench.
Outside to outside of rings is 4.08″. Standard rings are .63″ wide and have 2 screws per ring. 6 Hole to hole spacing dimensions are .50″, 1.88″, .50″, .37″, .50″. Mount has 6 holes thru it so it can be used on the long and short receiver. 2 holes will not be used. Depends on the gun to what 4 will be used. Height of mount from top of receiver to centerline of scope tube is – medium 1.06″, high 1.19″.
- Precision machined from a solid block of top-grade billet 6061T6 aluminum
- Custom made to fit each type of firearm and align perfectly with your rifle’s receiver
- No moving parts between the firearm and the scope
- 67% lighter than comparable one-piece mounts with four times the threads and precision socket-head cap screws for absolute strength and security
- Absorbs shock and withstands temperature extremes better than steel mounts at a fraction of the weight
- Made in the USA
- Manufacturer: DNZ
- Item: Game Reaper
- SKU: 12044
- UPC: 879956001696
- Color/Finish: Black
- Material: Aluminum
- Pieces: 1
- Ring Height Style: High
- Ring Height: 1.19″
- Ring Diameter: 1″
